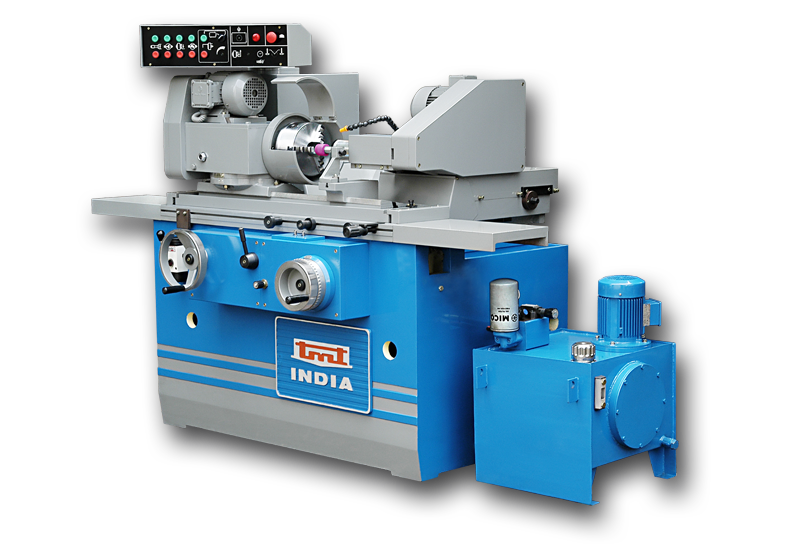

Bore Grinding Machine
Specifications
Capacity
Distance between work spindle nose to grinding spindle nose |
Standard | Long Bed |
| 400 | 600/800/1000 | |
| Max. Grinding Length | 125 | |
| Min. Bore dia (with standard spindle other sizes on request) |
30 | |
| Max. Swing dia (large swing dia available on request) |
210 |
Grinding Wheel Spindle
| Swivel Base | + - 15 deg |
| Cross Slide Travel | 80 |
| Top Slide Adjustment | 180 |
| Spindle speed standard (18000/25000 rpm on request) |
12000 rpm |
| Main Motor | 1.5 Kw. |
| Spindle housing bore | 80 |
Workhead
Longitudinal displacements |
Standard | Long Bed |
| 400 | 600/800/1000 | |
| Swivel | -45 degree | |
| Speed Range rpm – 290, 440, 625 (A.C. Variable drive on request) |
3 steps | |
| Power | 0.75 Kw |
Table Feed
Minimum Stroke |
10 |
| Feed rate | 30-4000 |
| Swivel | -3 + 6 |
SPECIFICATIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE. |
|
