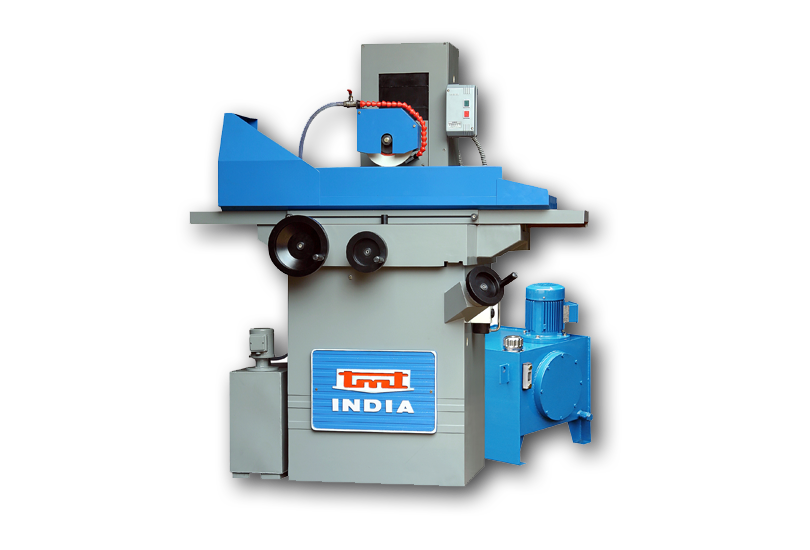

Surface Grinding Machine
Specifications
| MAIN FEATURES : |
| 1) HIGH PRECISION SPINDLES HAS TWO PAIRS OF SUPER PRECISION ANGULAR CONTACT BEARINGS. |
| 2) LONGITUDINAL AND CROSS MOVEMENT ON ANTI-FRICTION GUIDEWAYS MATERIAL. |
| 3) TABLE TRAVERSE MECHANISM BUILT IN SADDLE FOR RUGGED AND DURABLE OPERATION. DRUM AND ROPE SYSTEM PROVIDED FOR SMOOTH AND VIBRATION FREE MOVEMENT. |
| 4) LONGITUDINAL TABLE TRAVEL ON ROPE SYSTEM. |
| 5) VERTICAL MOVEMENT ON ROLLLER BEARINGS. |
| 6) HAND OPERATED LUBRICATION PUMP FOR GUIDEWAYS, SCREW AND NUT. |
| 7) AUTO CYCLIC LUBRICATION** FOR GUIDEWAYS SCREW AND NUT. |
| MAIN SPECIFICATIONS | |
| Working surface of table | 550 x 200 mm |
| Max. grinding surface | 525 x 200 mm |
| Permanent magnetic chuck recommended | 500 x 200 mm |
| Distance between table surface & spindle centre. | 450 mm |
| Vertical movement on hand wheel | 0.005 per div. |
| Grinding wheel size | 203 x 31.75 x 12.7 mm |
| Spindle motor | 2 HP |
| Rotationspeed of spindle | 2800 rpm |
| Coolant pump motor | 0.10 HP |
| Floor area | 84 x 60 inches |
| Machine height | 68 inches |
| Net weight | 1200 kgs |
| OPTIONAL EQUIPMENTS : | |
| 1) Magnetic chuck size 500 X 200 mm | |
| 2) Coolant tank with pump and supply fittings | |
